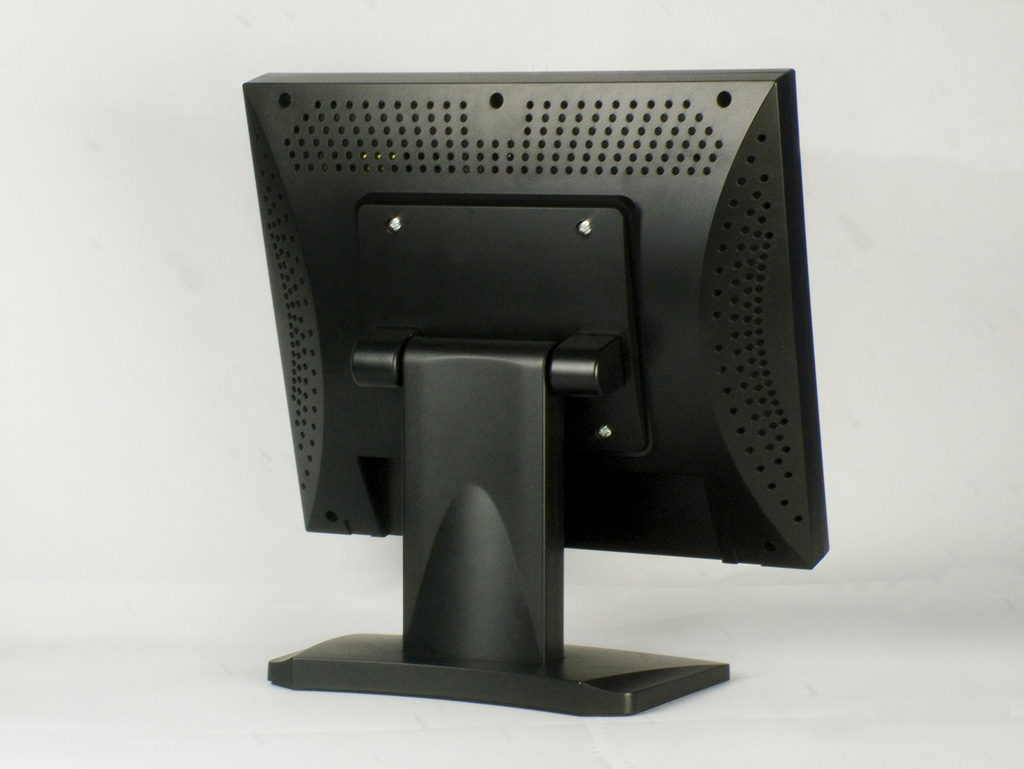

LCD touchmonitor
10,4"
na
objednávku,dotyk odporový nebo
povrch.vlna, záruka 2
roky
|
Feature: |
|
High Brightness: 350nits,CCFLX2 |
|
High contrast ratio: 300:1 |
|
Long life time: 50000 hours |
|
Max. Resolution: 800X600 |
|
VESA Mounting: 75mmX75mm or
100mmX100mm |
|
Touch solution options |
|
|
|
Specification: |
|
LCD panel |
10.4" |
|
Display mode |
VGA 640X350 (70Hz) |
|
VGA 720X400 (70Hz) |
|
VGA 640X480 (60Hz/72Hz/75Hz) |
|
SVGA 800X600 (56Hz/60Hz/72Hz/75Hz) |
|
Max Resolution |
800(H)X600(V) |
|
Contrast ratio |
300:1 |
|
High brightness |
350 nits |
|
Display color |
262K |
|
View angle |
120(H)X80(V) |
|
Response time |
25ms |
|
Input |
VGA |
analoge RGB/ TTL |
|
Active area (mm) |
211.2(H)X158.4(V) |
|
Power supply |
12VDC 2.5A |
|
Power consumption |
Less than15W |
|
Operating temp. |
5 C~35 C |
|
20%~80% |
|
Dimension |
280X280X130mm(280mmX240mmX28mm) |
|
Weight |
2.56Kg |
|
Certificate |
CCC, FCC, UL,CE |
|
Order information |
| |
|
10.4" LCD with 5 Wire and USB
interface: 7.800Kč |
| |
|
10.4" LCD with SAW and USB interface:
8.300Kč |
externí napáječ
|
